3D Bevel Plasma Cutting Machine
A 3D bevel plasma machine tilts the torch while it cuts, so plate parts come off the table with their weld bevel already cut. A rotating bevel head on a gantry cuts V, Y, X and K bevels with bevel angles from 0 to ±45°, using HD plasma for clean edges. It removes the separate grinding or milling step before welding.
- 0 to ±45°bevel angle
- V Y X Kbevel types
- HD plasmafor clean edges
- Gantrymachine base
Watch it cut

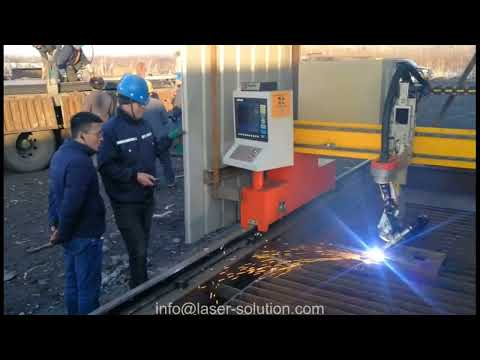

CNC gantry cutting bevelling machine
Specifications
Swipe the table sideways to see all columns.
| Parameter | 3D bevel plasma |
|---|---|
| Machine base | Gantry CNC cutting machine |
| Bevel head | Rotating plasma bevel head |
| Bevel angle | 0 to ±45° |
| Bevel types | V, Y, X and K on plate |
| Plasma | HD plasma |
| Working area and thickness | Set to your plate; confirmed on your quotation |
Why bevel on the cutting machine
Most welded plate over about 10 mm needs a bevel. Done by hand, every part goes from the plasma table to a grinder or a bevelling machine, and the angle and land vary with the operator. With a bevel head, the bevel is cut in the same program as the part outline, so the angle is repeatable and the part goes straight to fit-up.
Bevel types on plate
Swipe the table sideways to see all columns.
| Bevel | Shape | Typical use |
|---|---|---|
| V | One edge bevelled | Butt joints welded from one side |
| Y | V bevel with a flat land | Controls burn-through at the root |
| X | Bevelled from both faces | Thick plate welded from both sides |
| K | Double bevel on one member | T-joints in thick plate |
Who uses it
Steel structures
Bevelled flange and web plates for welded beams and box columns.
Construction machinery
Booms, arms and frames in thick plate.
Pressure vessels and tanks
Bevelled shell plates and heads.
Shipbuilding
Bevelled hull and deck plates.
Need bevels on pipe instead of plate? See the 5-axis pipe beveling machine and the large pipe profile cutting machine. Bevel shapes are explained in our bevel types guide.
Shipping, installation and support
Free production layout
Send your parts list or shop drawing and our engineers suggest the machine size, plasma source and table layout before you order.
Packed for sea freight
Machines are packed for container shipping. We quote to your nearest port in South America, Africa or elsewhere and prepare the export documents.
Installation and training
Remote installation guidance and operator training are included. On-site commissioning can be arranged.
Remote diagnostics
Our team supports the control, the plasma source and the nesting software remotely, so most problems are solved without waiting for a visit.
Get a configuration and price
Send the material, the thickest plate or largest pipe you cut, your sheet or pipe size and how many hours a day the machine will run. An engineer replies with the right bevel head and gantry size, the options and a price delivered to your port.
Frequently asked questions
What bevel angles can it cut?
From 0 to ±45°.
Which bevel types are possible on plate?
V, Y, X and K bevels, programmed with the part outline.
Why use HD plasma for bevel cutting?
High-definition plasma gives a narrower, squarer cut with less dross, so the bevel face is ready for welding with little or no grinding.
What plate size and thickness does it handle?
The bevel head is fitted to a gantry machine sized to your plate. Send your plate size and thickness and we confirm the configuration.
Can I see it working?
Yes. Watch the video on this page, or ask us on WhatsApp for more cutting videos.
Related machines and guides
Last updated 15 October 2026. Specifications are for standard configurations and can change with options; confirm on your quotation.
