Executive Summary: Optimizing Throughput with the LFH2040 2KW Fiber Laser

The LFH2040 Industrial Fiber Laser Cutting Machine is engineered for high-duty cycle metal fabrication environments requiring a balance of large-format processing and precision accuracy. Equipped with a 2000W (2KW) fiber laser source, this system is optimized for high-speed processing of thin to medium-gauge carbon steel, stainless steel, and aluminum alloys. The 2000mm x 4000mm working area accommodates standard oversized sheets, reducing material handling time and maximizing nesting efficiency.

For industrial procurement managers, the LFH2040 represents a strategic investment in reliability. The machine utilizes a reinforced, heat-treated welded bed and a fifth-generation aviation aluminum gantry, ensuring structural integrity under high-acceleration G-forces. By integrating an IP54-rated independent control cabinet, the electronic components are shielded from the conductive dust and ambient heat typical of heavy industrial floors, significantly extending the Mean Time Between Failures (MTBF).

Technical Specifications

The following table outlines the core engineering parameters of the LFH2040. These specifications are verified under standard operating conditions and represent the baseline for 2KW configurations.

Key Component Matrix and Engineering Architecture

1. Structural Integrity: The Stress-Relieved Bed

The LFH2040 utilizes a heavy-duty plate-welded bed. Unlike lighter tube-welded frames, this structure undergoes a 600°C heat treatment process followed by 24-hour furnace cooling to eliminate internal residual stresses. This prevents structural deformation over 10+ years of operation. The bed is then finished on a high-precision 5-axis gantry milling center to ensure the parallelism and perpendicularity of the rail mounting surfaces.

2. Motion Control: Rack, Pinion, and Servo Integration

To achieve 1.2G acceleration, the LFH2040 employs a dual-drive Y-axis configuration. We utilize YYC (Taiwan) helical rack and pinions paired with Yaskawa (Japan) or Delta (Taiwan) high-torque bus-type servo motors. The helical design provides a larger contact surface area than straight racks, resulting in smoother motion, reduced vibration, and higher load-bearing capacity during rapid direction changes.

3. Laser Source Options: MAX, Raycus, and IPG

The 2KW output is delivered via a high-stability fiber source. Procurement managers can specify the source based on regional serviceability and application requirements:

• IPG (Germany/USA): The industry gold standard for beam quality and long-term power stability.
• Raycus: Excellent cost-to-performance ratio, widely used for carbon and stainless steel applications.
• MAX Photonics: High-efficiency output with robust back-reflection protection, ideal for processing reflective materials like aluminum and brass.

4. Cypcut FSCUT2000 Control System

The LFH2040 is powered by the Cypcut FSCUT2000 CNC system, the most widely adopted software in the industrial fiber laser sector. It supports advanced features such as:

• FlyCut: High-speed cutting for arrays of holes, reducing head lift cycles.
• Frog-Leap Positioning: Optimizes the parabolic path of the laser head between cuts to minimize idle time.
• Automatic Nesting: Integrated CypNest compatibility for maximizing sheet utilization.
• Real-time Monitoring: Capacitive height sensing with 0.1mm sensitivity to maintain focal consistency on uneven sheets.

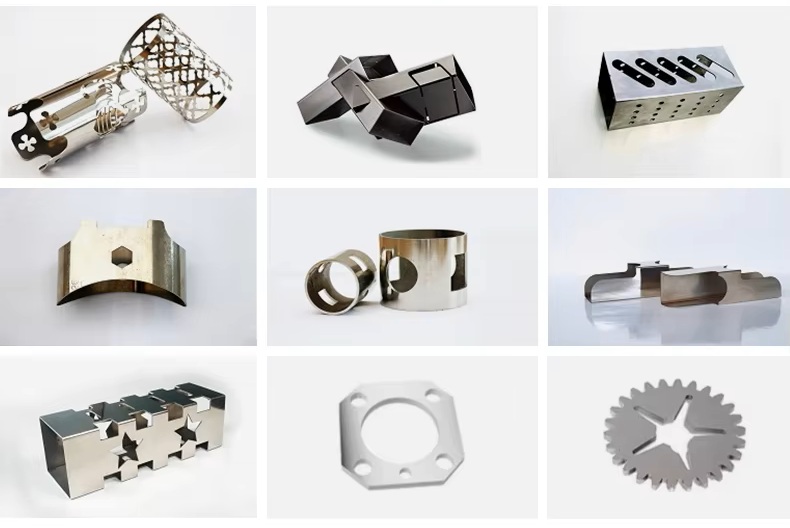

Material Thickness and Cutting Capacity (2KW)

The following data represents the maximum production thickness and optimal quality thickness for the 2KW LFH2040. Note that cutting speeds will vary based on gas purity (Oxygen for CS, Nitrogen for SS/Al) and material grade.

Industrial Protection and Safety Standards

The LFH2040 is designed for the rigors of 24/7 production. The IP54 independent control cabinet is a critical feature for CNC engineers. By isolating the PLC, servo drivers, and laser source power supply in a dust-proof, air-conditioned enclosure, the system prevents the ingress of metallic dust which causes short circuits in standard ventilated cabinets.

Furthermore, the machine includes an automatic lubrication system that services the X, Y, and Z-axis rails and racks at programmable intervals. This ensures consistent friction coefficients and prevents premature wear of the transmission components.

Maintenance and Operational FAQ

What is the daily maintenance requirement for the LFH2040?

Daily maintenance is minimal but essential. Operators must check the protective lens of the Raytools head for dust or burn spots, verify the water level and temperature of the chiller, and clear the slag collection drawers. The CNC system provides automated alerts for lubrication and filter changes.

How does the 2KW power level handle reflective materials?

The 2KW fiber laser is capable of cutting aluminum and brass. However, for consistent production, we utilize laser sources with integrated back-reflection protection and the Raytools BM111 head, which features a specialized optical path to prevent reflected light from damaging the fiber cable or the source modules.

What is the expected lifespan of the laser source?

The fiber laser sources (IPG/Raycus/MAX) have a rated diode lifespan of approximately 100,000 hours. In a typical two-shift industrial environment, this equates to over 15 years of operational life, provided the chiller water is changed regularly and the environment is kept within specified temperature ranges.

Can the LFH2040 be integrated into an automated production line?

Yes. The Cypcut system supports I/O expansion for integration with automatic loading and unloading systems (suction lifters or pallet changers). The LFH2040 can also be networked via Ethernet for centralized job management and remote diagnostics.
