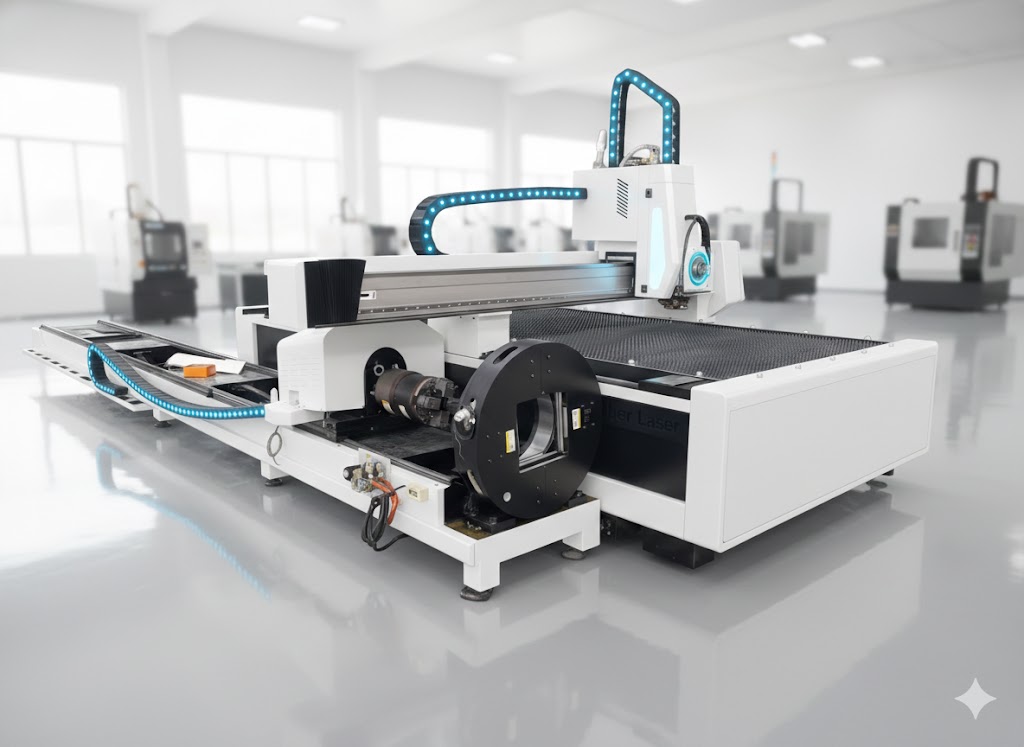

LFH1530 6KW Fiber Laser Cutting Machine: High-Speed Precision for Industrial Metal Fabrication

The LFH1530 6KW Fiber Laser Cutting Machine is an industrial-grade CNC solution engineered for high-volume metal fabrication environments. Operating at a 6000W power rating, this system bridges the gap between thin-sheet agility and thick-plate capability. The LFH1530 is specifically designed to optimize the duty cycle of manufacturing plants by integrating a high-rigidity machine bed with advanced motion control components. By utilizing a 6KW laser source, procurement managers can expect a significant reduction in piercing times and a substantial increase in linear cutting speeds across carbon steel, stainless steel, and non-ferrous alloys compared to 3KW or 4KW alternatives.

Executive Summary: Efficiency Gains in 6KW Laser Processing

The transition to 6KW laser technology represents a strategic upgrade for facilities processing materials between 10mm and 25mm. The LFH1530 utilizes a high-density photon beam to achieve rapid melt-pool dynamics, allowing for 1.5G acceleration and linkage speeds of up to 120m/min. This power level is the “sweet spot” for industrial ROI, offering the ability to nitrogen-cut stainless steel up to 16mm with a dross-free finish, thereby eliminating secondary grinding processes. The integration of an IP54-rated electrical cabinet ensures that the sensitive CNC electronics and laser source drivers are protected from the conductive dust and thermal fluctuations common in heavy industrial workshops.

Technical Specifications: LFH1530-6KW

The following table outlines the critical engineering parameters of the LFH1530. These specifications are verified under standard operating conditions and represent the baseline for machine performance evaluation.

Key Components Matrix

The LFH1530 is built upon a foundation of mechanical stability and optical precision. Below is a breakdown of the core subsystems that define its industrial reliability.

1. Heavy-Duty Plate-Welded Machine Bed

The frame is constructed from high-tensile carbon steel plates, welded and then subjected to a 600°C stress-relief annealing process. This ensures the bed maintains structural integrity over a 20-year lifespan without thermal deformation. The internal honeycomb structure provides superior vibration dampening, which is critical when the machine operates at 1.5G acceleration to prevent “ghosting” or edge serration during high-speed directional changes.

2. IP54 Independent Control Cabinet

Unlike standard CNC cutters, the LFH1530 features a standalone electrical cabinet rated at IP54. This enclosure houses the laser source, drivers, and PLC. It is equipped with an industrial air conditioner to maintain a constant 25°C environment, preventing the overheating of fiber optic connectors and protecting sensitive components from the metallic dust prevalent in fabrication shops.

3. Cypcut FSCUT4000 Control System

The FSCUT4000 is a high-end, closed-loop control system designed specifically for 6KW+ laser power. It supports advanced features such as:

• Active Anti-Collision: Real-time monitoring of the laser head height to prevent impact with tipped parts.
• FlyCut: Optimized pathing that cuts lines in a single motion without stopping at intersections.
• Frog-Leap Positioning: Parabolic lift-and-move sequences that minimize non-cutting transition time.

4. Precision Motion Hardware

The X and Y axes utilize YYC helical rack and pinion systems paired with 35mm linear guides. This configuration allows for high torque transmission while maintaining the ±0.02mm repositioning accuracy required for complex aerospace and automotive components. The Z-axis is controlled by a high-response autofocus laser head (Raytools or Precitec), which adjusts the focal point in milliseconds based on material topography.

Material Thickness Capacity: 6KW Performance Data

The 6KW laser source provides a significant advantage in piercing speed and edge quality for medium-to-thick plates. The following table indicates the maximum cutting capacities and optimal production thicknesses.

Maintenance and Operational Longevity

To maintain the high-precision output of the LFH1530, a structured maintenance protocol is required. The fiber laser source itself is virtually maintenance-free with a 100,000-hour MTBF (Mean Time Between Failure), but the peripheral systems require attention:

Daily: Clean the protective lens of the laser head using optical-grade wipes and anhydrous ethanol. Check the gas pressure levels for Oxygen and Nitrogen. Empty the slag collection drawers.

Weekly: Inspect the linear rails and racks for debris. The LFH1530 features an automatic lubrication system, but manual verification of oil levels in the reservoir is necessary. Clean the dust filters on the IP54 electrical cabinet.

Monthly: Check the water quality in the dual-temperature chiller. If the conductivity exceeds 20μS/cm, the deionized water must be replaced. Inspect all pneumatic connections for leaks that could affect cutting gas consistency.

Frequently Asked Questions (FAQ)

Q: What is the power requirement for the 6KW LFH1530?
A: The system requires a 3-phase 380V/60Hz (or 415V/50Hz) power supply. Total power consumption, including the chiller and exhaust fans, is approximately 45-50kVA. A voltage stabilizer is highly recommended to protect the laser source from grid fluctuations.

Q: Can this machine cut reflective materials like copper and brass?
A: Yes. The 6KW fiber laser source is equipped with back-reflection protection. Unlike CO2 lasers, the 1080nm wavelength of the fiber laser is efficiently absorbed by non-ferrous metals, allowing for stable processing of copper and brass.

Q: What is the difference between the MAX, Raycus, and IPG source options?
A: IPG is the global gold standard for stability and beam quality but carries a premium price. Raycus and MAX offer excellent cost-to-performance ratios and are widely used in industrial applications with robust local service networks. All three options integrate seamlessly with the Cypcut control system.

Q: How does the 1.5G acceleration impact production?
A: High acceleration reduces the “ramp-up” time required for the machine to reach its programmed cutting speed. In complex geometries with many short segments or sharp corners, 1.5G acceleration can reduce total cycle time by up to 25% compared to 1.0G machines.
