Executive Summary: Optimizing Throughput with the LFH1530 3KW Fiber Laser

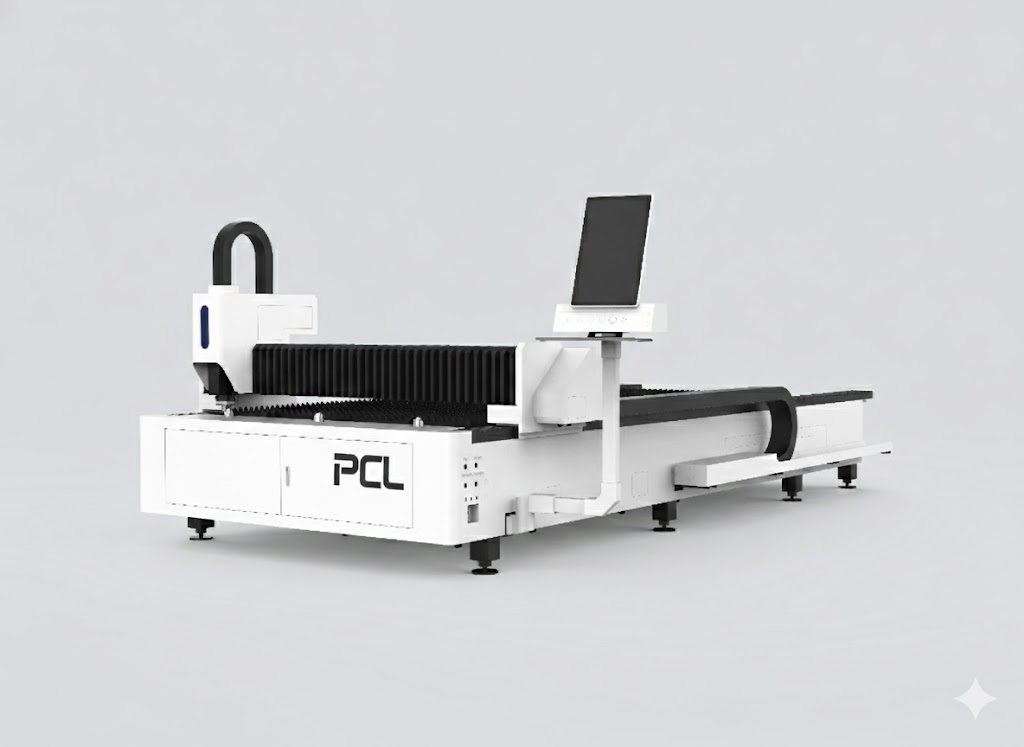

The LFH1530 3KW CNC Fiber Laser Cutting Machine represents the industrial benchmark for medium-thickness metal fabrication. Engineered for 24/7 production environments, this system bridges the gap between entry-level 1KW units and high-cost ultra-high-power oscillators. By utilizing a 3000W fiber source, procurement managers can achieve a significant reduction in cost-per-part when processing carbon steel up to 20mm and stainless steel up to 12mm.

The LFH1530 is built upon a high-rigidity, heat-treated plate-welded chassis designed to withstand 1.2G acceleration forces without structural resonance. The integration of an IP54-rated independent control cabinet ensures that sensitive electrical components, including the Yaskawa servo drivers and the laser source, are protected from the conductive dust and thermal fluctuations common in heavy industrial workshops. For CNC engineers, the LFH1530 offers a precision-engineered motion system featuring YYC helical racks and HIWIN linear guides, delivering a positioning accuracy of ±0.03mm across the entire 1500mm x 3000mm working envelope.

Technical Specifications: LFH1530 – 3000W Configuration

The following table outlines the critical engineering parameters of the LFH1530. These specifications are verified under standard operating conditions and represent the baseline for industrial performance audits.

Key Components Matrix and Engineering Analysis

1. Heavy-Duty Plate-Welded Machine Bed

The LFH1530 utilizes a high-tensile strength plate-welded bed. Unlike tube-welded frames, this structure undergoes a 600°C heat treatment process followed by 24-hour furnace cooling to relieve internal stresses. This ensures the machine maintains geometric alignment for over 20 years of operation. The bed is further reinforced with internal stiffeners to dampen vibrations during high-speed directional changes, which is critical for maintaining edge quality at 1.2G acceleration.

2. Aviation-Grade Aluminum Gantry

To achieve high dynamic performance, the Y-axis gantry is manufactured from aerospace-grade aluminum alloy using a 4300-ton pressure extrusion process. This results in a lightweight yet high-rigidity component. The reduced mass allows the 3KW system to reach its maximum linkage speed of 120m/min rapidly, minimizing the “cornering slowdown” effect and increasing overall nesting efficiency.

3. Raytools Auto-Focus Laser Head

The 3KW LFH1530 is equipped with a Raytools (Switzerland) BM111 or BM114 series auto-focus cutting head. The integrated motor drive allows the system to change the focus position automatically within a range of +10mm to -12mm. This is essential for piercing thick plates (15mm+ carbon steel) where a multi-stage piercing strategy requires dynamic focal shifts to prevent back-reflection and nozzle damage.

4. Cypcut FSCUT2000 Control Logic

The machine runs on the Cypcut FSCUT2000 CNC system, the industry standard for fiber laser motion control. It supports advanced features such as:

• FlyCut: Non-stop cutting for thin materials to reduce cycle times.
• Frog-Hop: Optimized Z-axis lift paths to prevent collisions while maximizing travel speed.
• Automatic Nesting: Integrated CypNest software compatibility for material yield optimization.
• Real-time Monitoring: Capacitive height sensing with 0.1mm sensitivity for uneven sheet compensation.

5. IP54 Independent Electronic Cabinet

Industrial environments are harsh. The LFH1530 isolates all PLC units, servo drivers, and the laser source within an IP54-rated cabinet. This enclosure features an industrial-grade air conditioner to maintain a constant 25°C internal temperature, preventing the overheating of the laser oscillator and protecting electronics from the conductive metallic dust generated during the cutting process.

Material Thickness and Cutting Speed Capacity

The 3KW fiber laser source provides a versatile power density suitable for a wide range of ferrous and non-ferrous metals. The following table provides the maximum cutting capacities and recommended production thicknesses for the LFH1530.

Note: Maximum thickness values represent separation cuts. For high-quality industrial finishes, production thickness is typically 80% of the maximum value.

Maintenance Protocols for Industrial Longevity

To maintain the ±0.03mm positioning accuracy of the LFH1530, a structured maintenance schedule must be followed by the CNC engineering team.

Daily Maintenance

Optical Inspection: Check the protective window of the Raytools head for dust or burn spots. A contaminated lens can lead to thermal lensing and beam divergence. Lubrication: Ensure the automatic lubrication system is filled with ISO VG 32/68 oil to maintain the integrity of the YYC racks and HIWIN guides.

Weekly Maintenance

Chiller Fluid Check: Inspect the conductivity of the deionized water in the cooling system. High conductivity can lead to electrolysis within the laser source. Dust Extraction: Clean the partitioned dust collection trays under the machine bed to ensure optimal airflow and smoke extraction.

Monthly Maintenance

Mechanical Alignment: Verify the perpendicularity of the X and Y axes using a dial indicator. Check for any backlash in the pinion engagement. Electrical Cabinet: Clean the air conditioner filters on the IP54 cabinet to ensure heat exchange efficiency remains at peak levels.

Frequently Asked Questions (FAQ)

1. What is the advantage of a 3KW source over a 2KW source for 6mm stainless steel?

While a 2KW source can cut 6mm stainless steel, a 3KW source increases the cutting speed by approximately 40-50%. This reduces the Heat Affected Zone (HAZ), resulting in a cleaner edge with less dross and higher dimensional stability.

2. How does the IP54 cabinet affect the machine’s lifespan?

Standard cabinets allow ambient air to circulate, bringing in metallic dust that can cause short circuits in high-voltage servo drivers. The IP54 cabinet is sealed and cooled, typically extending the lifespan of electronic components by 30-50% in heavy industrial environments.

3. Can the LFH1530 handle reflective materials like copper and brass?

Yes. The 3KW Raycus and IPG sources used in the LFH1530 include back-reflection protection. When combined with the N2 assist gas, the system can safely process reflective alloys without damaging the fiber delivery cable.

4. Is the Cypcut software compatible with standard CAD/CAM files?

Absolutely. Cypcut supports .DXF, .AI, .PLT, and .Gerber formats. It also has a built-in CAD module for minor geometry adjustments on the shop floor, allowing engineers to modify lead-ins and micro-joints without returning to the design office.

5. What is the expected life of the laser source?

The fiber laser oscillators (Raycus/MAX/IPG) are rated for 100,000 hours of operation to the 50% power degradation point. Under standard 3-shift industrial use, this equates to over 10 years of service life.
