Executive Summary: Industrial Throughput and Efficiency at 30KW

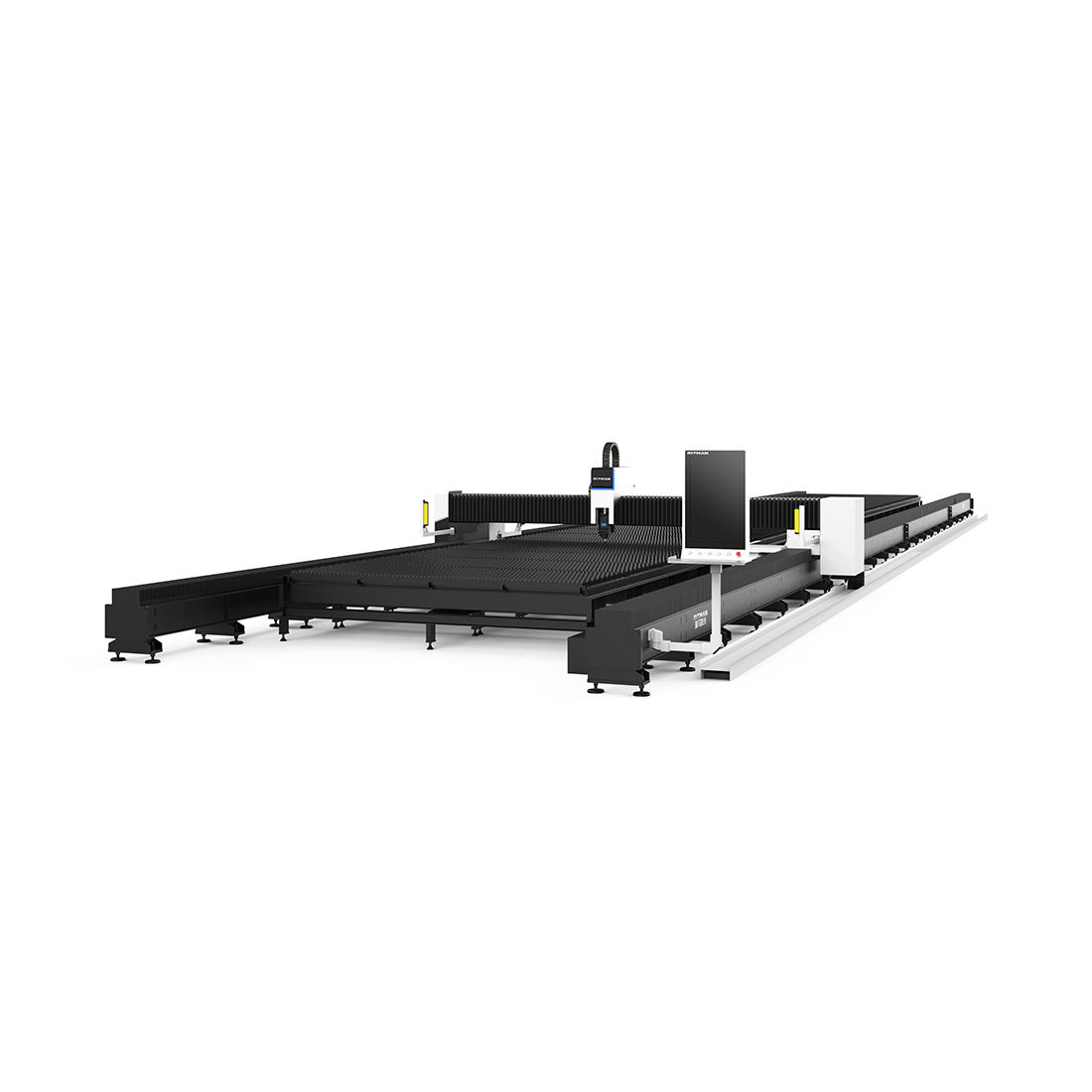

The GF30120 30KW Fiber Laser Cutting Machine represents the pinnacle of ultra-high-power thermal processing for heavy-duty industrial applications. Engineered for 24/7 continuous operation, this system is designed to replace traditional plasma cutting and lower-wattage laser systems in sectors such as shipbuilding, heavy machinery, and steel structure fabrication. By utilizing a 30,000-watt laser source, the GF30120 achieves a critical threshold where the cost-per-part for thick plate processing (30mm to 100mm) drops significantly due to increased feed rates and reduced gas consumption per meter.

The integration of a 3000mm x 12000mm large-format working area allows for the processing of oversized sheets, minimizing material handling and maximizing nesting efficiency. With an acceleration capability of 2.0G and a positioning accuracy of ±0.05mm, the GF30120 bridges the gap between massive scale and high-precision engineering. This machine utilizes a bus-based control architecture to ensure real-time synchronization between the laser power modulation and the motion system, preventing over-burning at corners and ensuring edge quality that meets ISO 9013 Grade 2 standards.

Technical Specifications: GF30120 30KW

The following table outlines the core technical parameters of the GF30120. These specifications are verified under standard industrial operating conditions.

Key Components and Structural Integrity

1. Heavy-Duty Heat-Treated Machine Bed

The GF30120 utilizes a hollow-structure, segmented welding bed. Unlike standard frames, this 30KW-grade bed undergoes a rigorous stress-relief annealing process at 600°C followed by natural aging for 24 hours. This ensures that the frame remains dimensionally stable under the extreme thermal loads generated by a 30KW beam. The hollow design prevents the heat from the laser from deforming the internal structure, maintaining long-term mechanical accuracy. The bed is equipped with a multi-zone intelligent dust extraction system that opens only in the area where the laser is currently cutting, maximizing suction efficiency and protecting the optical components from particulate matter.

2. IP54 Rated Independent Electrical Cabinet

To ensure the longevity of the high-frequency electronics and the laser source, the GF30120 features an IP54-rated independent electrical cabinet. This cabinet is equipped with an industrial-grade air conditioner that maintains a constant internal temperature and humidity. This is critical for 30KW systems, as the power modules are sensitive to ambient temperature fluctuations and conductive dust. By isolating the power supplies, drivers, and PLC from the external environment, the MTBF (Mean Time Between Failures) is significantly extended.

3. High-Precision Motion System

The motion system is built on precision-ground helical racks and pinions (YYC/Atlanta) paired with high-torque Yaskawa or Delta bus-controlled servo motors. The use of a bus-based system (EtherCAT) allows for microsecond-level communication between the CNC controller and the drives. This is essential for maintaining a 2.0G acceleration rate on a 12-meter gantry. The gantry itself is constructed from aerospace-grade extruded aluminum, providing the necessary rigidity-to-weight ratio to handle high-speed direction changes without vibration-induced “ghosting” on the cut surface.

4. Intelligent Laser Cutting Head

The GF30120 is equipped with an intelligent auto-focus cutting head (typically Precitec ProCutter 2.0 or equivalent). This head features integrated sensors for real-time monitoring of the protective window, temperature, and gas pressure. At 30KW, the piercing process is critical; the head utilizes “lightning piercing” technology to reduce piercing time by up to 80% compared to 12KW systems. The head also includes an anti-collision system that stops motion instantly if an obstacle is detected, protecting the expensive optical assembly.

Material Thickness and Cutting Capacity

The 30KW power density allows for the use of air or nitrogen as an auxiliary gas for thicknesses that previously required oxygen. This results in a “bright surface” finish on stainless steel and carbon steel, eliminating the need for secondary grinding.

Cypcut FSCUT8000 Control System

The GF30120 is powered by the FSCUT8000 Bus-based Control System, specifically designed for ultra-high power fiber lasers. Key features include:

Active Anti-Collision Technology: The system uses a capacitive sensor to maintain a constant distance from the plate, with predictive algorithms to avoid tipped-up parts during high-speed traverses.

Real-time Power Modulation: As the machine slows down for corners, the system automatically adjusts the laser frequency and duty cycle to prevent over-melting, ensuring sharp 90-degree angles even in 50mm plate.

Intelligent Nesting: The integrated HypCut software allows for advanced nesting, common-line cutting, and bridge-cutting, which reduces material waste and minimizes the number of piercings required.

Maintenance and Operational Longevity

Maintaining a 30KW system requires adherence to a strict technical protocol to ensure optical purity and mechanical precision.

Daily Maintenance

Operators must inspect the protective windows of the laser head every shift. At 30KW, even a microscopic dust particle on the lens can cause thermal runaway and destroy the optical assembly. The water chiller levels and conductivity must be checked to ensure the laser source is cooled with deionized water, preventing internal scaling.

Weekly and Monthly Protocols

The X, Y, and Z-axis guide rails should be cleaned and lubricated via the automatic lubrication system. The dust collection bins must be emptied to maintain airflow. Monthly, the IP54 cabinet filters should be inspected and cleaned to ensure the internal air conditioning unit operates at peak efficiency. The rack and pinion mesh should be checked for debris to prevent premature wear on the teeth.

Frequently Asked Questions (FAQ)

Q: What is the primary advantage of 30KW over 12KW for 20mm plate?
A: While both can cut 20mm, the 30KW machine can cut it up to 3x faster using air or nitrogen, resulting in a cleaner edge with zero dross and a significantly lower cost-per-meter due to the speed-to-power ratio.

Q: Does the GF30120 require a specialized power grid?
A: Yes. A 30KW laser source, combined with the chiller and motion systems, requires a stable industrial power supply (typically 380V/50Hz or 480V/60Hz) with a dedicated transformer capable of handling at least 200kVA to account for peak loads.

Q: How does the machine handle reflective materials like copper?
A: The 30KW laser source (especially IPG and MAX) includes back-reflection protection. Combined with the high power density, the beam quickly couples with the material, minimizing the window of time where reflection can occur.

Q: What is the expected lifespan of the laser source?
A: The fiber laser source is rated for 100,000 hours of operation. Under proper maintenance and environmental control (IP54 cabinet), this equates to over 10 years of multi-shift production.
