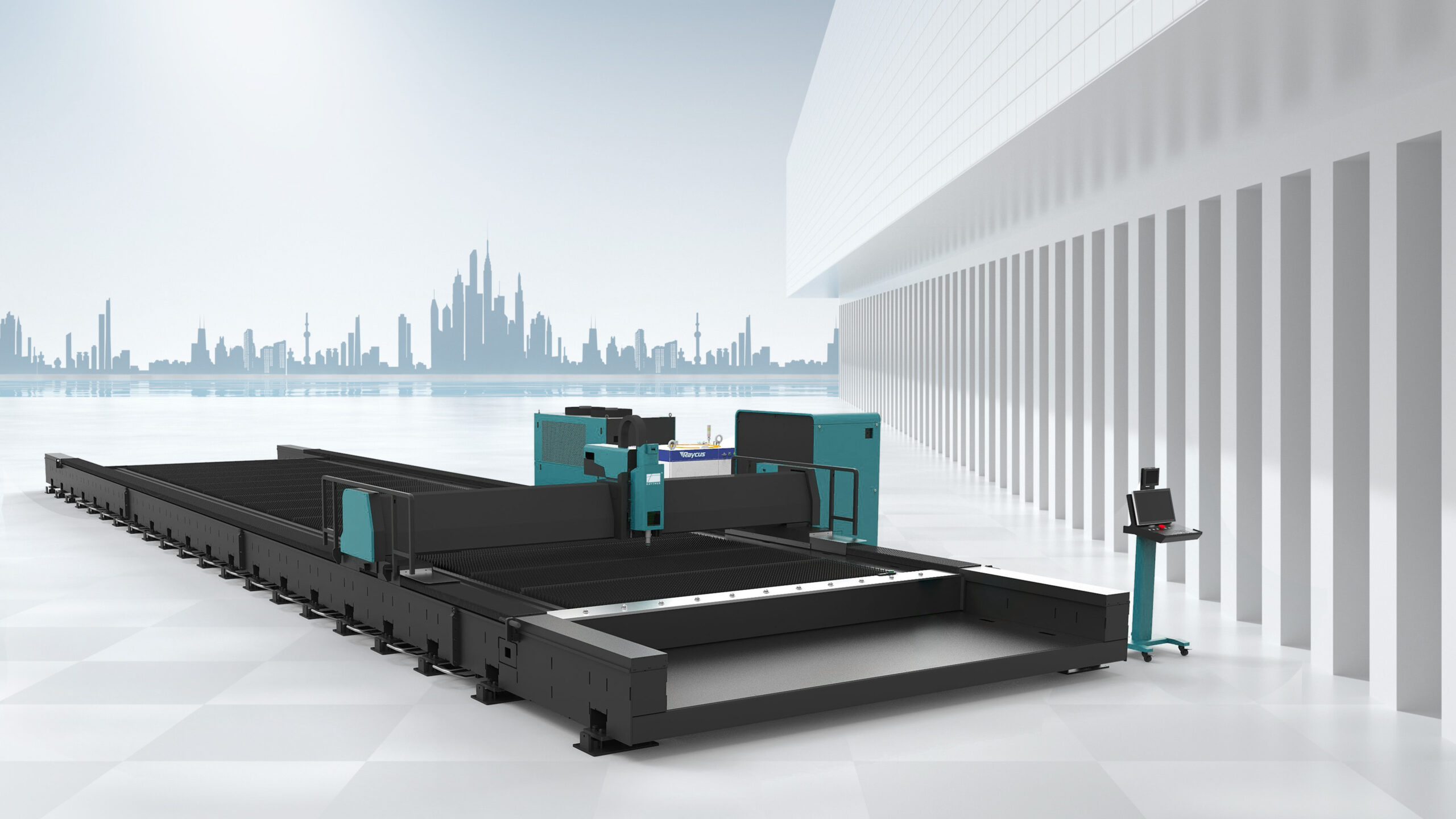

Industrial High-Precision Fiber Laser Cutting Machine GF30120 – 20KW CNC Metal Cutter

Executive Summary: High-Power Efficiency and Throughput

The GF30120 20KW Fiber Laser Cutting Machine is engineered for high-capacity industrial environments requiring rapid processing of thick-plate metals and large-format workpieces. By utilizing a 20,000W laser source, this system transitions from traditional thin-sheet processing to heavy-duty industrial fabrication, effectively replacing plasma cutting for plates up to 50mm with superior edge quality and dimensional accuracy. The 3000mm x 12000mm working area accommodates standard oversized plates, reducing material handling time and maximizing nesting efficiency.

For procurement managers, the GF30120 represents a significant reduction in cost-per-part through increased cutting speeds—up to 4x faster than 6KW systems on 20mm carbon steel. For CNC engineers, the machine offers a robust mechanical platform featuring a heat-treated segmented bed, IP54-rated electronic enclosures, and EtherCAT-based control systems that ensure synchronized motion and long-term thermal stability under continuous 24/7 operation.

Technical Specifications Table

The following parameters define the operational envelope and mechanical tolerances of the GF30120 20KW system.

Key Components Matrix

1. Heavy-Duty Segmented Welded Bed

The GF30120 utilizes a high-rigidity machine bed constructed from high-tensile carbon steel. To prevent structural deformation during high-power 20KW operations, the bed undergoes a 600°C stress-relief annealing process followed by 24-hour furnace cooling. This ensures the mechanical integrity of the guide rail mounting surfaces over decades of use. The segmented design allows for efficient thermal expansion management, preventing the 12-meter frame from warping under the intense heat generated by high-wattage laser processing.

2. IP54 Independent Control Cabinet

Industrial environments are prone to dust, metallic particles, and fluctuating temperatures. The GF30120 features an IP54-rated electronic cabinet. This enclosure is completely isolated from the external atmosphere and equipped with an industrial-grade air conditioner. This setup maintains a constant internal temperature for the servo drives, laser source, and PLC, preventing thermal drift and protecting sensitive components from conductive dust that causes short circuits in high-voltage CNC environments.

3. Precision Motion System: Rack, Pinion, and Rails

To handle the 1.5G acceleration required for efficient 20KW pathing, the machine is equipped with YYC or APEX precision racks and HIWIN/PMI 35mm linear guide rails. The motion is driven by high-torque Yaskawa or Delta servo motors via a planetary reducer. This configuration ensures that even at 120m/min traverse speeds, the machine maintains a positioning accuracy of ±0.03mm, critical for interlocking parts and aerospace-grade tolerances.

4. FSCUT8000 EtherCAT Control System

The 20KW model is powered by the Cypcut FSCUT8000 bus-based control system. Unlike traditional pulse-based systems, EtherCAT allows for real-time feedback from the laser head and motors. It features advanced functions such as B-Axis collision avoidance, active vibration suppression, and ultra-fast piercing (Lightning Piercing). The software integrates nesting, path optimization, and real-time monitoring of gas pressure and laser power levels.

5. Intelligent Auto-Focus Laser Head

Equipped with a Precitec ProCutter or Raytools high-power cutting head, the system features automated focal point adjustment. For 20KW applications, the head includes internal temperature sensors and pressure monitoring to detect lens contamination before damage occurs. The auto-focus capability allows the machine to switch seamlessly between different material thicknesses without manual intervention, optimizing the beam waist for both high-speed thin sheet cutting and high-pressure thick plate piercing.

Material Thickness Capacity (20KW)

The 20KW laser source significantly expands the “sweet spot” for fiber laser cutting, allowing for high-quality dross-free edges on thick plates that were previously only achievable via plasma or waterjet.

Maintenance Protocols for High-Power CNC Systems

Maintaining a 20KW fiber laser requires adherence to strict technical protocols to ensure uptime and beam quality. CNC engineers should prioritize the following:

Optical Path Integrity: The protective windows in the laser head must be inspected daily in a clean-room environment. At 20KW, even a microscopic dust particle on the lens can cause thermal runaway and destroy the optical assembly. Use only reagent-grade isopropanol and lint-free swabs.

Chiller Conductivity: The 20KW source generates significant heat. The dual-circuit chiller must use deionized water. Engineers must monitor the water conductivity levels (maintain below 20μS/cm) and replace filters every 3-6 months to prevent calcification within the laser source cooling channels.

Lubrication: The rack and pinion system utilizes an automatic lubrication pump. Ensure the reservoir is filled with the specified ISO VG 68 or equivalent oil to maintain the 1.5G acceleration performance and prevent mechanical backlash.

Frequently Asked Questions (FAQ)

Q: Why choose 20KW over 12KW for a 12-meter bed?
A: The 20KW source provides a 40-60% increase in cutting speed on 20mm+ plates compared to 12KW. For a large-format machine like the GF30120, this allows for higher throughput on large structural components, significantly reducing the “time-on-machine” for massive workpieces.

Q: What are the gas requirements for 20KW cutting?
A: High-power cutting requires high-flow gas regulators. For 50mm stainless steel, Nitrogen consumption is substantial. We recommend a liquid nitrogen bulk tank system with a high-pressure vaporizer to ensure consistent 25-30 bar pressure at the nozzle.

Q: How does the machine handle the heat from the 20KW beam?
A: The GF30120 features a fire-resistant internal cladding and a segmented dust extraction system. The bed is designed with heat-resistant copper plating in high-exposure areas to protect the structural frame from the reflected laser energy and molten slag.

Q: Is the FSCUT8000 system compatible with Industry 4.0?
A: Yes, the EtherCAT-based FSCUT8000 supports MES (Manufacturing Execution System) integration, allowing for real-time data logging of production metrics, error codes, and material usage, which can be monitored remotely by production managers.
