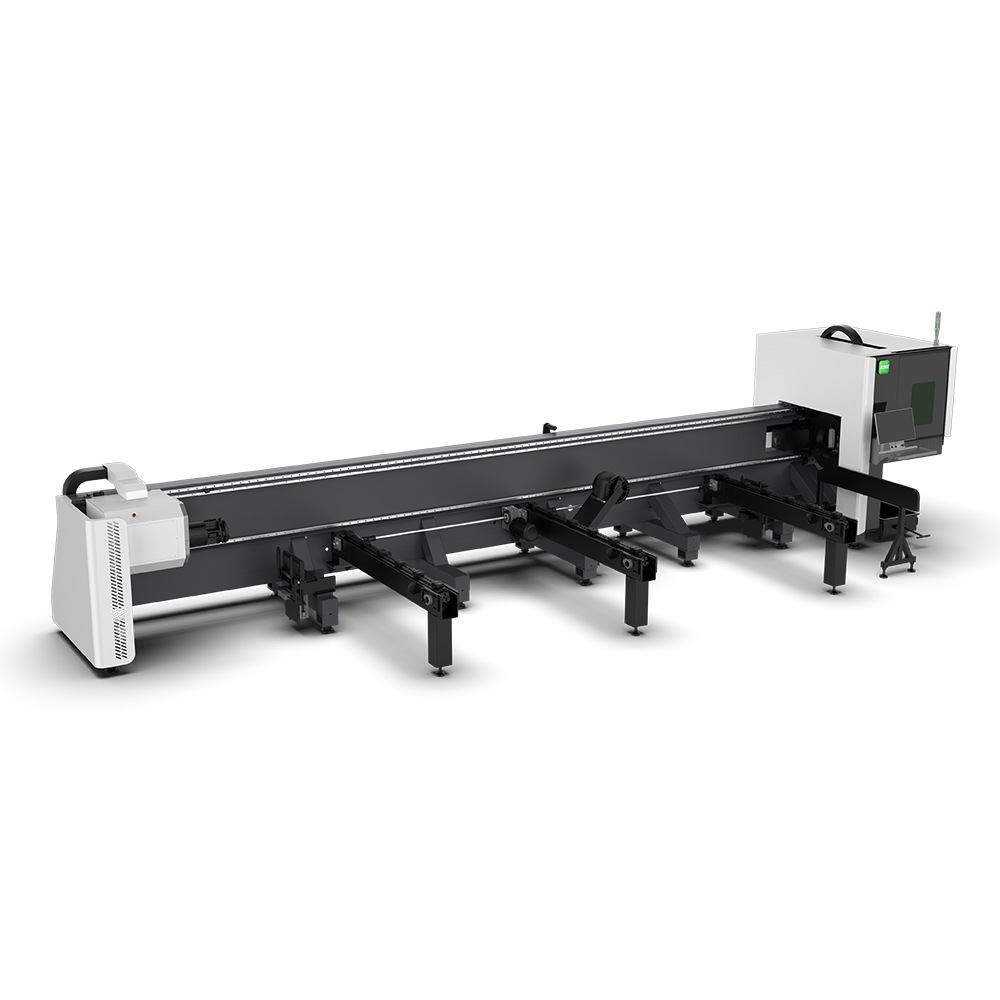

LT360 Industrial Heavy-Duty CNC Tube Laser Cutting System: 3KW Precision Engineering
The LT360 CNC Tube Laser Cutter represents the pinnacle of heavy-duty industrial tube processing. Engineered specifically for large-diameter profiles and heavy-walled structural steel, the LT360 integrates a high-torque 360mm pneumatic chuck system with a 3KW fiber laser source. This configuration is designed to meet the rigorous demands of the construction, agricultural machinery, and heavy engineering sectors, where structural integrity and dimensional accuracy are non-negotiable.
Unlike standard tube cutters, the LT360 is built on a reinforced, stress-relieved machine bed capable of handling massive payloads without compromising on high-speed kinematic performance. The system focuses on three core pillars: mechanical stability under high centrifugal forces, precision laser delivery, and the elimination of material waste through advanced zero-tailing technology.
High-Torque 360mm Industrial Chuck System
The heart of the LT360 is its dual-pneumatic, self-centering chuck system. With a maximum clamping diameter of 360mm, this system is engineered to secure heavy round, square, and rectangular tubes, as well as H-beams and C-channels. The chucks utilize a high-pressure pneumatic clamping mechanism that provides consistent force across the entire circumference of the workpiece, preventing slippage during high-acceleration rotations.
Dynamic Balance and Precision
Processing large-diameter tubes at high speeds introduces significant centrifugal forces. The LT360 chucks are dynamically balanced to minimize vibration. The rear chuck features a full-stroke movement, allowing it to feed material through the front chuck with micron-level positioning accuracy. This ensures that even at the maximum capacity of 360mm, the concentricity of the cut remains within strict industrial tolerances.
Heavy-Load Support Mechanisms
To prevent tube sagging—which can lead to beam defocusing and mechanical wear—the LT360 incorporates an intelligent follow-up support system. These supports automatically adjust their height based on the tube diameter and rotation, ensuring the workpiece remains perfectly horizontal throughout the cutting cycle. This is critical for maintaining the focal point of the 3KW laser on the material surface.
3KW Fiber Laser Integration and Optical Stability
The 3KW fiber laser source provides the optimal power density for cutting carbon steel, stainless steel, and aluminum alloys. At this power level, the LT360 achieves a balance between high-speed processing of thin-walled tubes and the ability to penetrate heavy-walled structural sections up to 12mm-16mm depending on the material grade.
Autofocus Cutting Head Technology
The system utilizes an intelligent autofocus cutting head equipped with high-speed sensors. The head automatically adjusts the focal position during the cutting process to compensate for any slight irregularities in the tube surface. This ensures a consistent kerf width and a clean, burr-free finish, reducing the need for secondary grinding or finishing processes.
Beam Path Protection
Laser stability is maintained through a fully enclosed beam delivery system. The fiber cable is protected by a heavy-duty conduit, and the internal optics are cooled by a dual-circuit industrial chiller. This prevents thermal lensing—a common issue in high-power laser systems where heat causes the lens to deform, shifting the focal point and degrading cut quality over long production shifts.
Zero-Tailing Technology and Material Efficiency
In industrial tube processing, material waste is a significant cost factor. The LT360 addresses this through a specialized “zero-tailing” or “ultra-short tailing” mechanical configuration. By utilizing a three-chuck or advanced two-chuck bypass system, the machine can process the tube until the very end of the stock material.
Mechanical Bypass Logic
The rear chuck is designed to move into the proximity of the front chuck, effectively “handing off” the material. This allows the laser head to cut within the final few millimeters of the tube. In a standard setup, tailing waste can exceed 200mm-300mm; the LT360 reduces this to near-zero, significantly increasing the ROI per length of raw material, especially when working with expensive alloys or large-format structural steel.
Structural Integrity and Motion Control
The LT360 frame is constructed from high-tensile steel plates, welded and then subjected to a rigorous heat-treatment process (annealing) to eliminate internal stresses. This ensures that the machine bed remains stable over decades of use, resisting the warping that can occur due to the weight of 360mm tubes.
Precision Kinematics
Motion is driven by high-precision rack and pinion systems paired with planetary reducers. The Y-axis (longitudinal feed) and X/U axes (rotation) are synchronized via a high-speed CNC controller. This synchronization allows for complex intersections, such as miter cuts and saddle joints, to be executed with perfect alignment for subsequent welding operations.
Industrial CNC Interface
The system runs on a dedicated tube-cutting bus-mastering control system. It supports real-time monitoring of gas pressure, laser power, and chuck status. The software includes advanced nesting algorithms specifically for tubes, allowing operators to maximize parts per pipe and import complex 3D CAD files (IGS, STEP) directly into the cutting interface.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Laser Source Power | 3000W (3KW) Fiber Laser |
| Maximum Tube Diameter (Round) | 360mm |
| Maximum Tube Side Length (Square) | 250mm x 250mm |
| Maximum Raw Tube Length | 6000mm / 9000mm / 12000mm (Optional) |
| Chuck Type | Pneumatic Heavy-Duty Self-Centering |
| X/Y Axis Positioning Accuracy | ±0.03mm |
| X/Y Axis Repeatability | ±0.02mm |
| Maximum Rotation Speed | 80 RPM |
| Maximum Acceleration | 1.0G |
| Maximum Workpiece Weight | Up to 1200kg (Total Tube Weight) |
| Cooling System | Dual-Temperature Industrial Water Chiller |
| Control System | CypTube / HypCut (Bus System) |
| Compatible Tube Shapes | Round, Square, Rectangular, Oval, Angle, Channel, H-Beam |
| Transmission System | High-Precision Rack & Pinion / Linear Guides |
| Tailing Length | <50mm (Zero-tailing configuration available) |
| Power Supply Requirement | 380V / 50Hz / 60Hz / 60A |
| Machine Weight | Approx. 8,500kg – 12,000kg (Depending on length) |
Industrial Applications and ROI
The LT360 is engineered for high-output environments where manual cutting and drilling of large pipes are bottlenecks. By consolidating multiple processes—sawing, drilling, and milling—into a single laser operation, manufacturers can reduce labor costs by up to 70%.
Structural Steel and Construction
For stadium seating, bridge components, and building frames, the LT360 provides the ability to cut complex notches and bolt holes in heavy-walled 360mm sections. The precision of the laser ensures that components fit together perfectly on-site, eliminating the need for manual adjustment or excessive welding filler.
Agricultural and Mining Equipment
Heavy machinery frames require high-strength steel tubes. The 3KW laser source easily handles the thick-walled profiles used in chassis construction, while the heavy-duty chucks ensure that even non-uniform or slightly bowed tubes are held securely for accurate processing.
Oil and Gas Infrastructure
The ability to process large-diameter pipes with high repeatability makes the LT360 an essential tool for pipeline manifolds and support structures. The zero-tailing feature is particularly valuable here, as the high-grade steel used in these industries carries a significant cost per meter.
In conclusion, the LT360 3KW CNC Tube Laser Cutter is a robust, high-precision solution for industrial-scale tube fabrication. Its combination of a 360mm heavy-duty chuck, advanced motion control, and material-saving technology provides a definitive competitive advantage for B2B manufacturers looking to scale their production of heavy structural components.
